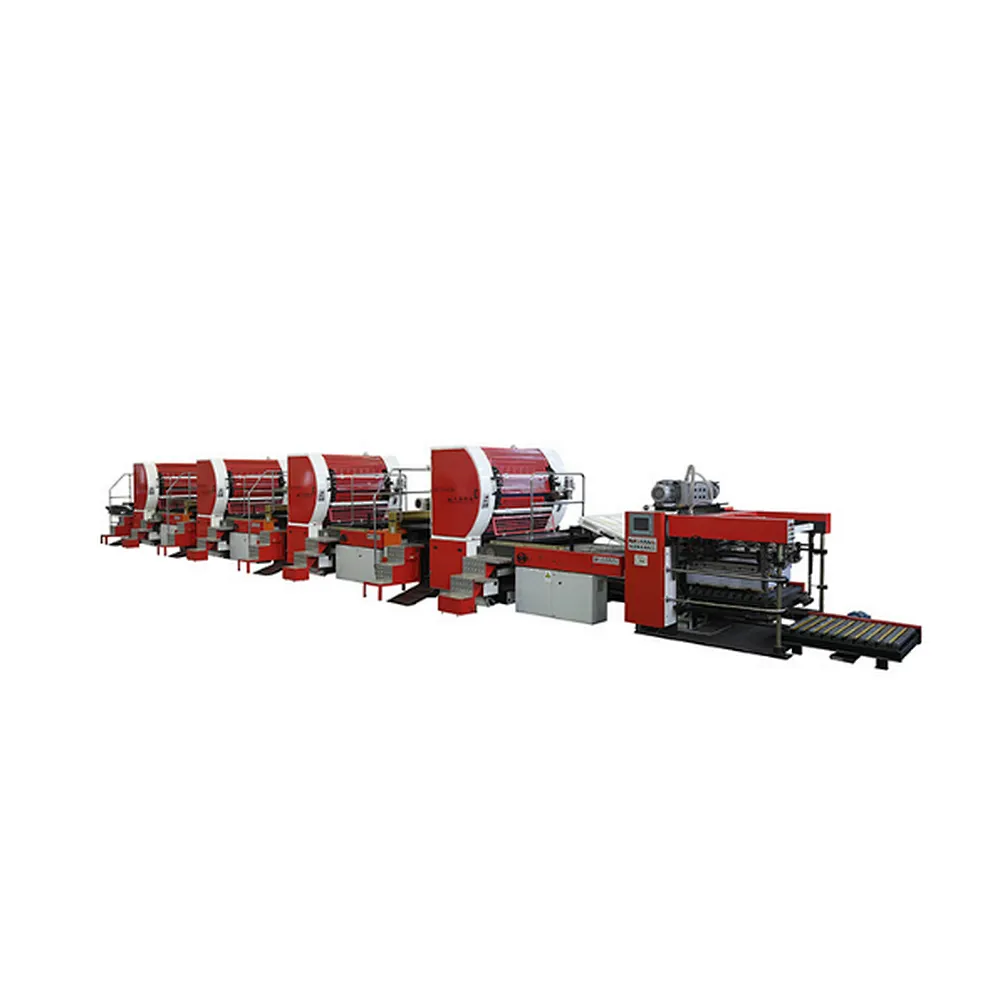

Tinplate Metal Printing Machine
TinplateMetalPrintingMachine
Quantity
Tinplate packaging due to its good sealing, preservation, light avoidance, robustness, and unique metal decorative charm, determines that it has a wide range of coverage in the packaging container industry, is the international general packaging varieties. Tinplate packaging decorated by our tinplate printing machines is full of innovation. Three-piece cans are often called tinplate three-piece cans, commonly used for food, beverage, dry powder, chemical products, aerosol products, and other canned containers.
Tinplate Printing Machine Advantages
Printing Quality Improvement
Dot reduction degree more than 98%
Value K: yellow (Y) ≥ 30%
Magenta (M) ≥ 34%
Cyan (C) ≥ 38%
Black (BK) ≥ 45%
Precision Improvement
Overlapping line precision ≤ 0.02mm
Minimum adjustment precision automatic system 0.01mm
Single adjustment deviation ≤ 0.005mm
Field Density
Yellow (Y) for 0.85 ~ 1.15,
Magenta (M) for 1.20 ~ 1.50,
Cyan (C) for 1.30 ~ 1.60,
Black ( BK) for 1.60 ~ 1.90
Key Indicators
50% dot expansion rate of ≤ 15%;
2% -98% printing dot step reduction
The highlighted part of the 2% dot is not lost
Dark tone 98% dot does not paste plate
